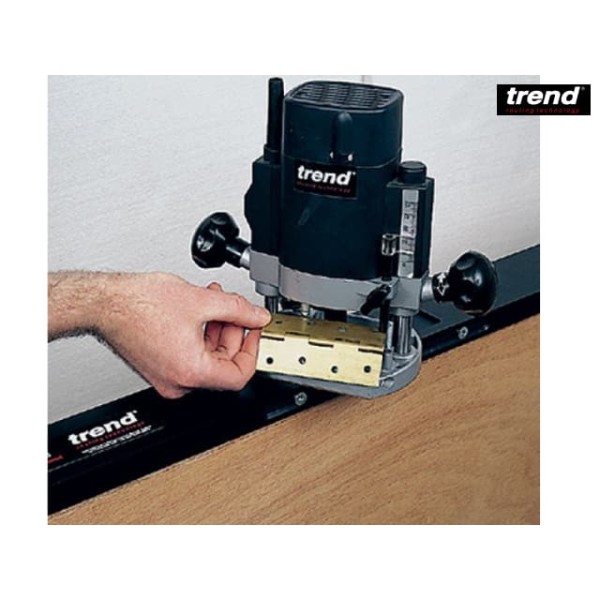

Quick and simple to set-up as the hinge is used as the pattern. The Trend Hinge Jig Template Set is designed for recessing hinges in 8-foot wooden doors and frames. It's easy to use with minimal set-up time. Completes the job both accurately and quickly. Used on-site and in joinery shops to increase productivity with excellent results. No need to mark out in the conventional way; this patented HINGE JIG FOR 8-FOOT DOORS: The Door Hinge Jig is a three piece portable template set designed for recessing hinges in 8 foot wooden doors and frames. Trend Routing 8-foot Hinge Jig for Entry Doors - Contractor Supply INCLUDES ROUTER BIT & GUIDE BUSH: Comes with a long-reach 15/32” diameter (¼” shank) TCT router bit and 1-3/16” screw-on guide bush. Four apertures with sliding plates. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern CLEAN AND ACCURATE RECESSES: The Hinge Jig ensures clean and accurate recesses, improving productivity and efficiency. Four apertures with sliding plates. Swivel end plate for 1/8 inch gap to head of door. T4EK router requires a ref., UUNIBASE. Use with a light duty plunge router with 1/4 inch collet. Suitable for timber based doors & square butt hinges. SWIVEL END PLATE & HINGE POSITIONS: Swivel end plate allows 1/8 gap to door head. Hinge position possible using a 4-1/2 inch hinge are 4-7/8 inch down, 30-3/8 inch down, 55-7/8 inch down and 81-3/8 inch down (or 9-1/8 inch up from bottom of door). Door Hinge Template H/JIG/A - Trend Hinge Jig A - Two Piece Jig For Quick, Accurate Repeatable Fitting Of Hinges To Doors And Frames Trend Tool Technology Plunge Router Accessory Clean & accurate recesses are achieved every time. Use a light duty plunge router ( ¼” collet).
